STF – Head and Tailstock Cradle-Type

Technical features

Emanuel STF Head and Tailstock Cradle-Type positioner

Emanuel STF Head and Tailstock Cradle-Type

Emanuel STF Head and Tailstock Cradle-Type

Emanuel STF Head and Tailstock Cradle-Type

Emanuel STF Head and Tailstock Cradle-Type

Emanuel STF Head and Tailstock Cradle-Type

The STF head and tailstock cradle-type is a double column fixed machine a with central saddle, that allows the lifting and the rotation of any kind of frame.

The STF Head and tailstock cradle-type positioners are an excellent solution in applications in which it is required the complete rotation of all 3 axis that need to be easily reached during the welding and assembly procedures.

Ergonomic positioners are used during welding and assembly operations of big weldments that are manufactured by companies of all sectors. Compared to similar products, Emanuel ergonomic positioners feature unique caractestictis such as: compact design, flexibility and lightness.

Emanuel column positioners are built according to the customer’s specific needs.

For information

Download the Brochure

Configur your equipment

Technical features

ADVANTAGES

Emanuel positioners offer many advantages:

Safety: reduces the need for dangerous movements while operating lifting equipment such as overhead cranes
Health: welders and operators always maintain the correct posture and reduce fatigue.
Improved production quality: allow to work at an ideal height and in correct position.
Increased productivity: lifting and turning products without overhead cranes or ordinary cranes reduces downtimes

SECTORS

The sector of application in welding and assembly are the most varied:

Truck frames and tanks
Earth moving machines and components
Railway bogies, train cars and frames
Automotive and military vehicles
Agricultural vehicles and machinery
And many other

MAIN FEATURES

The lifting of the X axe is mechanical, generated by a gear motor and screwnut connected to the loadsupporting device composed of a steel bracket.

The rotation of the Y and Z axes is mechanical, generated by a gear motor coupled with a self-braking motor with speed control via inverter system.

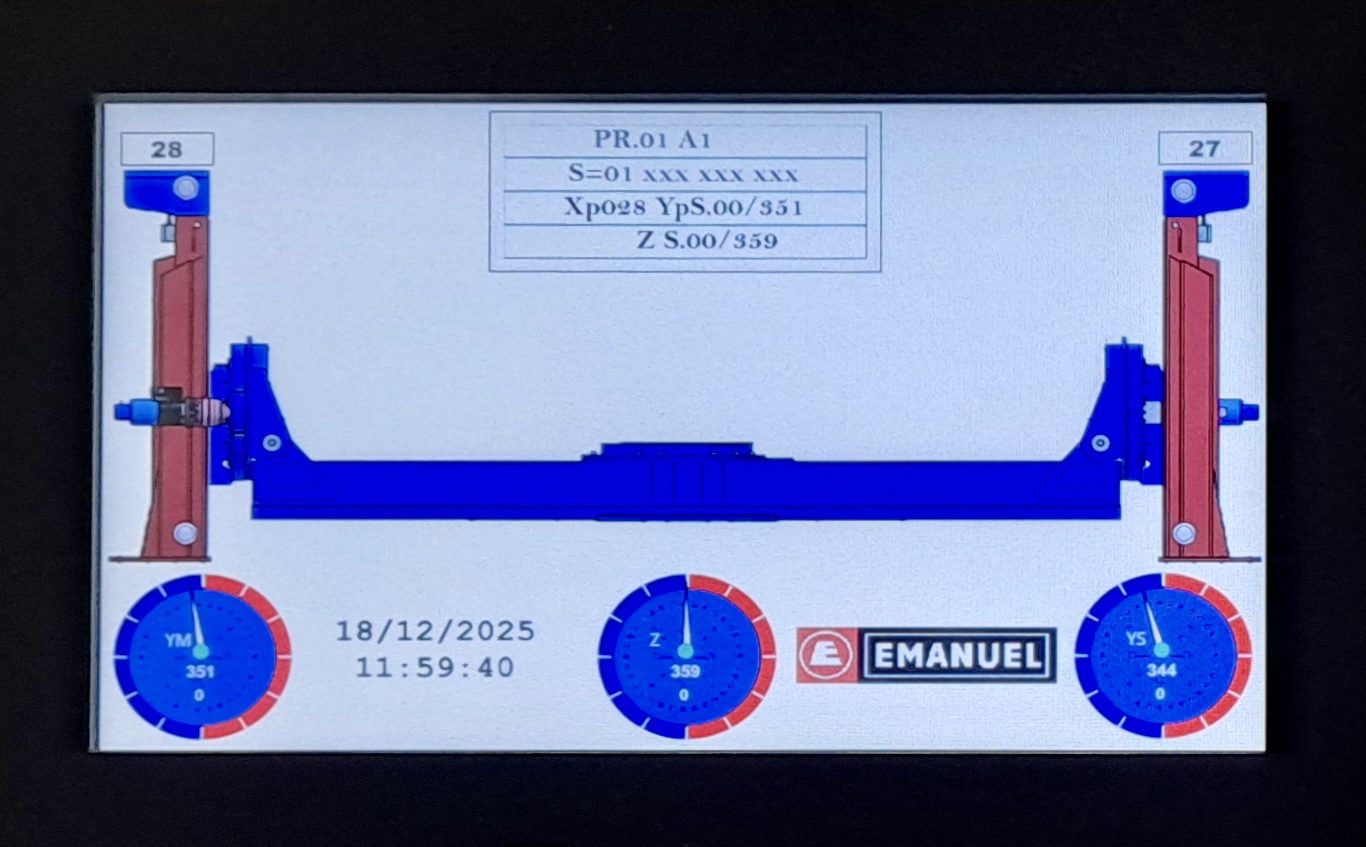

All the controls are on the control unit and on the hand held remote, which are installed on the master column or a wheeled trolley.

Most of the technical features can be customized.

Our positioners can feature for 4.0 Industry.

OPTIONAL

Rotary ground 400A-800A-1200A

Extra stroke in column height

Load cell system

Safety laser scanner

Safety wireless remote

Self-learning hardware & software system

Torque live detection system

Smart interface
