STR- Head and Tailstock Positioners

Technical features
Optional
Accessories
Contact Us
Emanuel STR Head and Tailstock Positioners
Emanuel STR Head and Tailstock Positioners
Emanuel STR Head and Tailstock Positioner with tank
Emanuel STR Head and Tailstock Positioners
Emanuel STR Head and Tailstock positioner
Emanuel STR Head and Tailstock Positioners
Emanuel STR Head and Tailstock positioner
Emanuel STR Head and Tailstock Positioners
Emanuel STR Head and Tailstock Positioners
Emanuel STR Head and Tailstock Positioners

The STR head and tailstock positioner with double column, that allows the lifting and the rotation of any kind of weldment. The Emanuel STR head and tailstock positioners are designed to be flexible and can also be used in the single-column configuration.

Welding column positioners are used during welding and assembly operations of big weldments that are manufactured by companies of all sectors. Compared to similar products, Emanuel ergonomic positioners feature unique caractestictis such as: compact design, flexibility and lightness. Our models start from a lifting capacity of 2 Tons up 90 Tons.

For information
Download the Brochure
Configur your equipment
ROI Calculator

Technical features

MAIN FEATURES

The lifting of the X axe is mechanical, generated by a gear motor and screwnut connected to the load supporting device composed of a steel bracket. The rotation of the Y axe is mechanical, generated by a gear motor coupled with a self-braking motor with speed control via inverter system.

All the controls are on the control unit and on the hand held remote, which are both installed on master column.



The STR is available in 3 different versions:

  • M, two columns one fixed and one movable
  • F, two columns both fixed
  • MM, two movable columns of which one must be fixed to the ground



Versions available that feature only rotation or only lifting.

Emanuel column positioners are built according to the customer’s specific needs.



ADVANTAGES

Emanuel positioners offer many advantages:

  • Safety: reduces the need for dangerous movements while operating lifting equipment such as overhead cranes
  • Health: welders and operators always maintain the correct posture and reduce fatigue.
  • Improved production quality: allow to work at an ideal height and in correct position.
  • Increased productivity: lifting and turning products without overhead cranes or ordinary cranes reduces downtimes



SECTORS

The sector of application in welding and assembly are the most varied:

  • Truck frames and tanks
  • Earth moving machines and components
  • Railway bogies, train cars and frames
  • Automotive and military vehicles
  • Agricultural vehicles and machinery
  • And many other

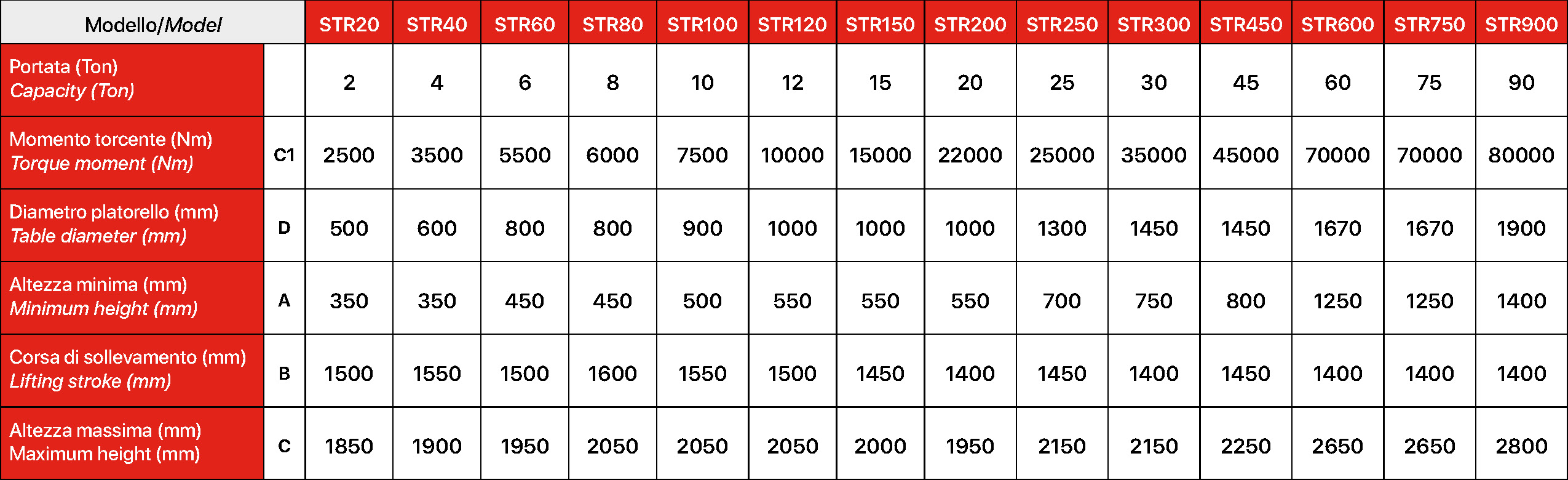

TECHNICAL SPECIFICATIONS

Emanuel STR Head and Tailstock Positioners

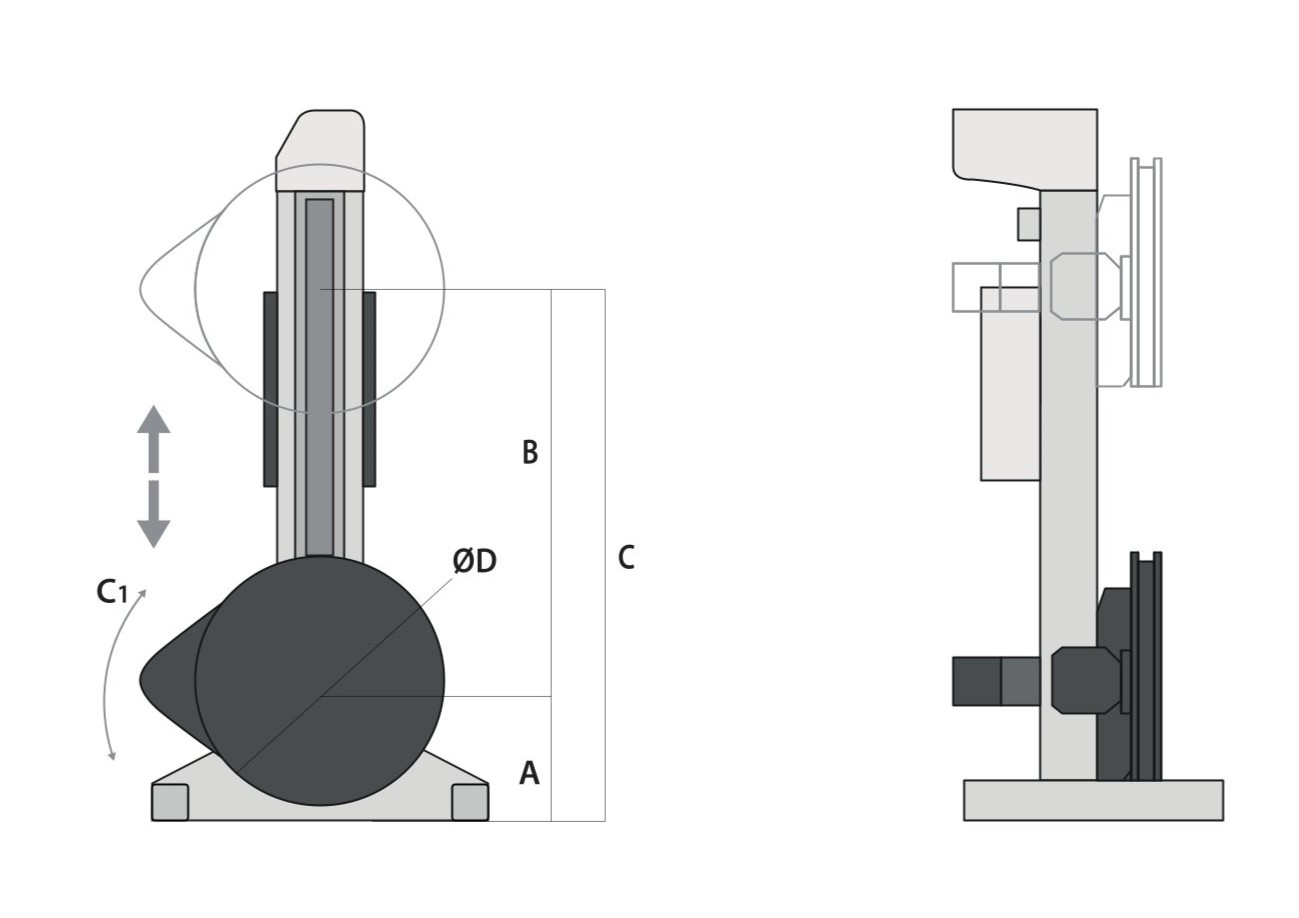

SECONDARY COLUMN
Emanuel STR Head and Tailstock Positioners

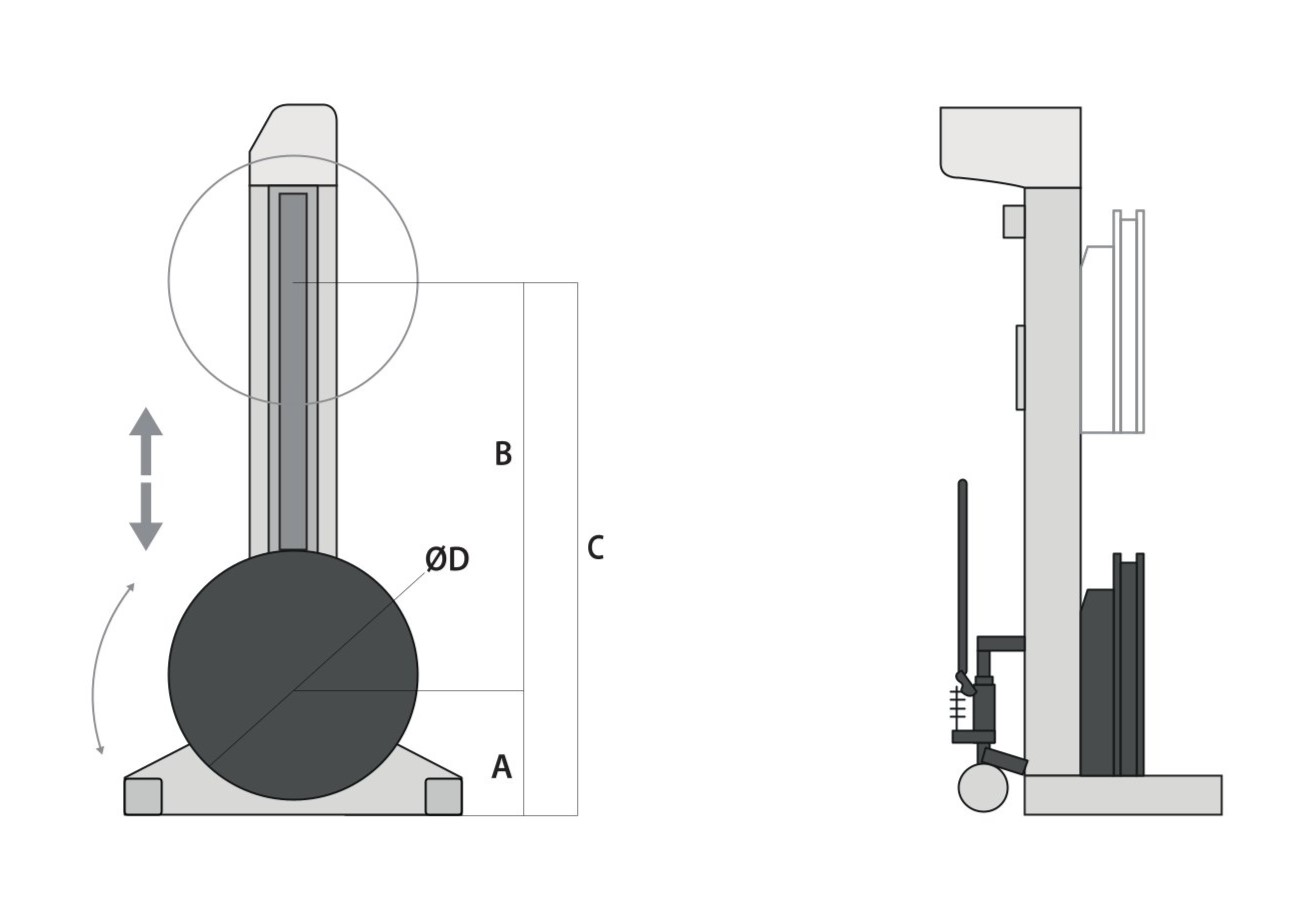

PRIMARY COLUMN



OPTIONAL

Rotary ground 400A-800A-1200A
Auxiliary rail displacement system - Manual or motorized
Double motorized version
Extra stroke in column height
Self-learning hardware & software system
Mechanical lock of the slave carriage
Motorized displacement system - Threephase or battery
Safety laser scanner
Torque live detection system
Load cell system
Safety wireless remote
Smart interface
Foot switch
