STS – Skyhook Positioners

Technical features

Emanuel STS Skyhook positioners

Emanuel STS skyhook positioner

Emanuel STS Skyhook Positioners

Emanuel STS Skyhook Positioners

Emanuel STS Skyhook Positioners

Emanuel STS Skyhook Positioners

Emanuel STS Skyhook Positioners

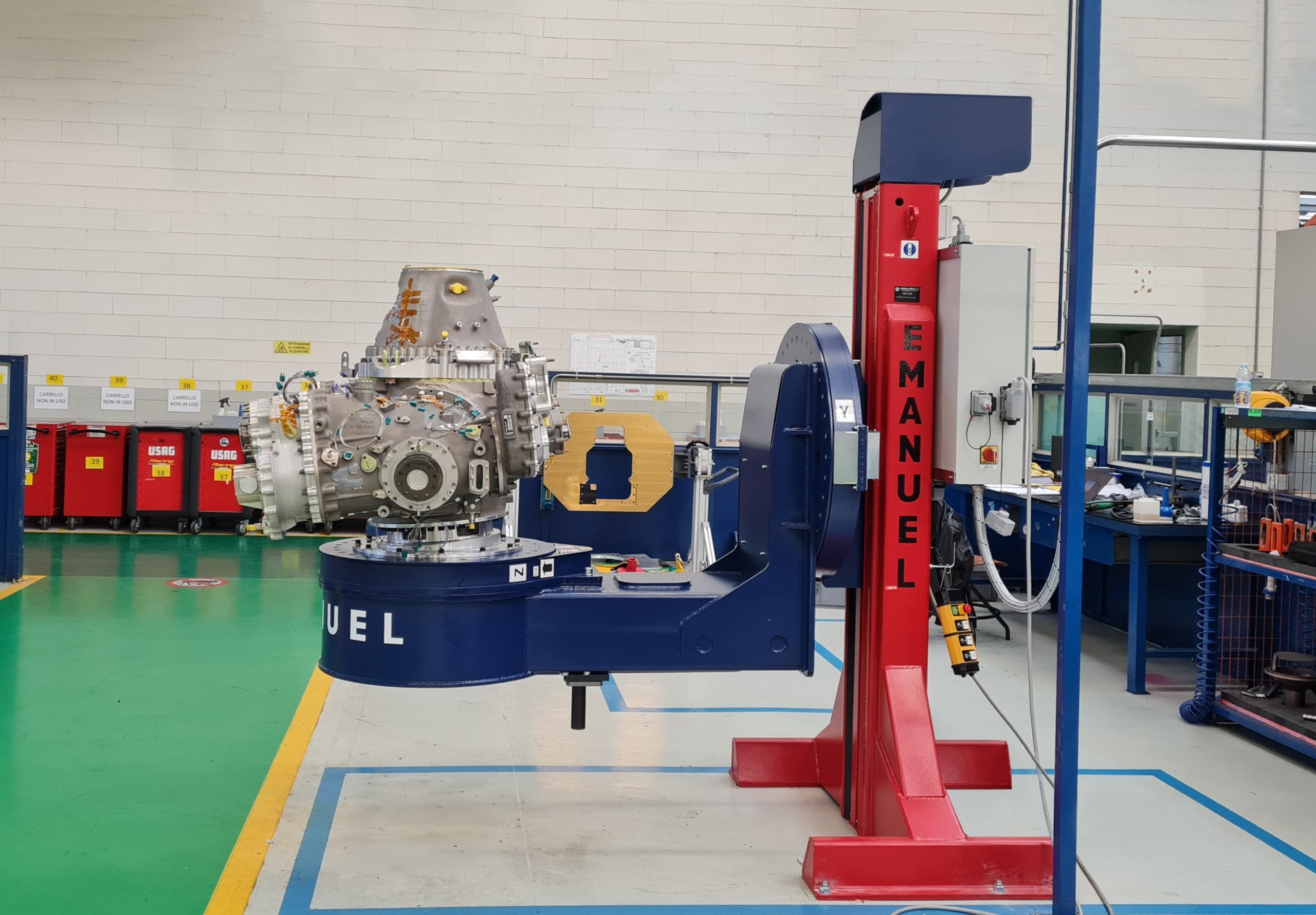

The STS skyhook positioners are single column fixed positioners, that allow the lifting and the rotation of any kind of frame.

The Emanuel STS Skyhook positioners are an excellent solution in applications in which it is required the complete rotation of all 3 axis that need to be easily reached during the welding and assembly procedures. Compared to similar products, Emanuel ergonomic positioners feature unique caractestictis such as: compact design, flexibility, and lightness.

The STS positioner is also available in the HEAVY-DUTY SWS version with improved performance.

For information

Download the Brochure

Configur your equipment

Technical features

MAIN FEATURES

The lifting of the X axe is mechanical, generated by a gear motor and screw-nut connected to the load supporting device composed of a steel bracket.

The rotation of the Y and Z axes is mechanical, generated by a gear motor coupled with a self-braking motor with speed control via inverter system.

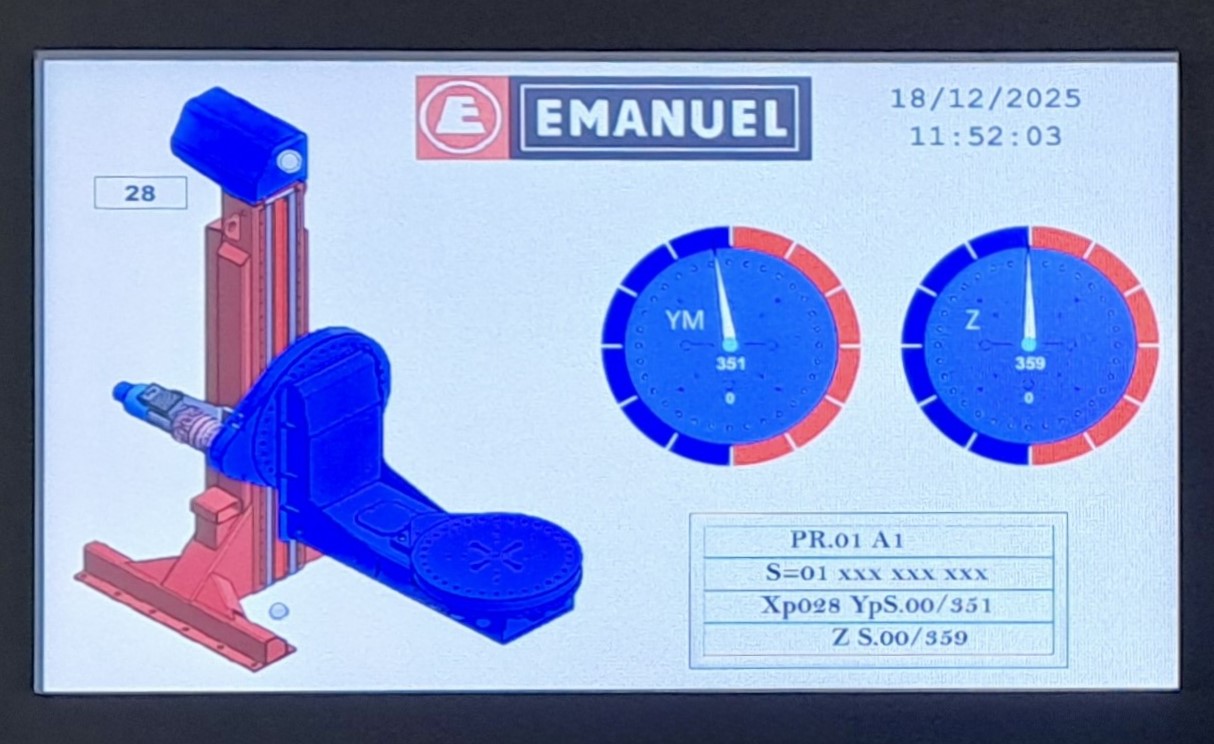

All the controls are on the control unit and on the handheld remote, which are both installed on master column.

Emanuel column positioners are built according to the customer’s specific needs.

The STS positioner is also available in the HEAVY-DUTY SWS version with improved performance.

ADVANTAGES

Emanuel positioners offer many advantages:

Safety: reduces the need for dangerous movements while operating lifting equipment such as overhead cranes
Health: welders and operators always maintain the correct posture and reduce fatigue.
Improved production quality: allow to work at an ideal height and in correct position.
Increased productivity: lifting and turning products without overhead cranes or ordinary cranes reduces downtimes

SECTORS

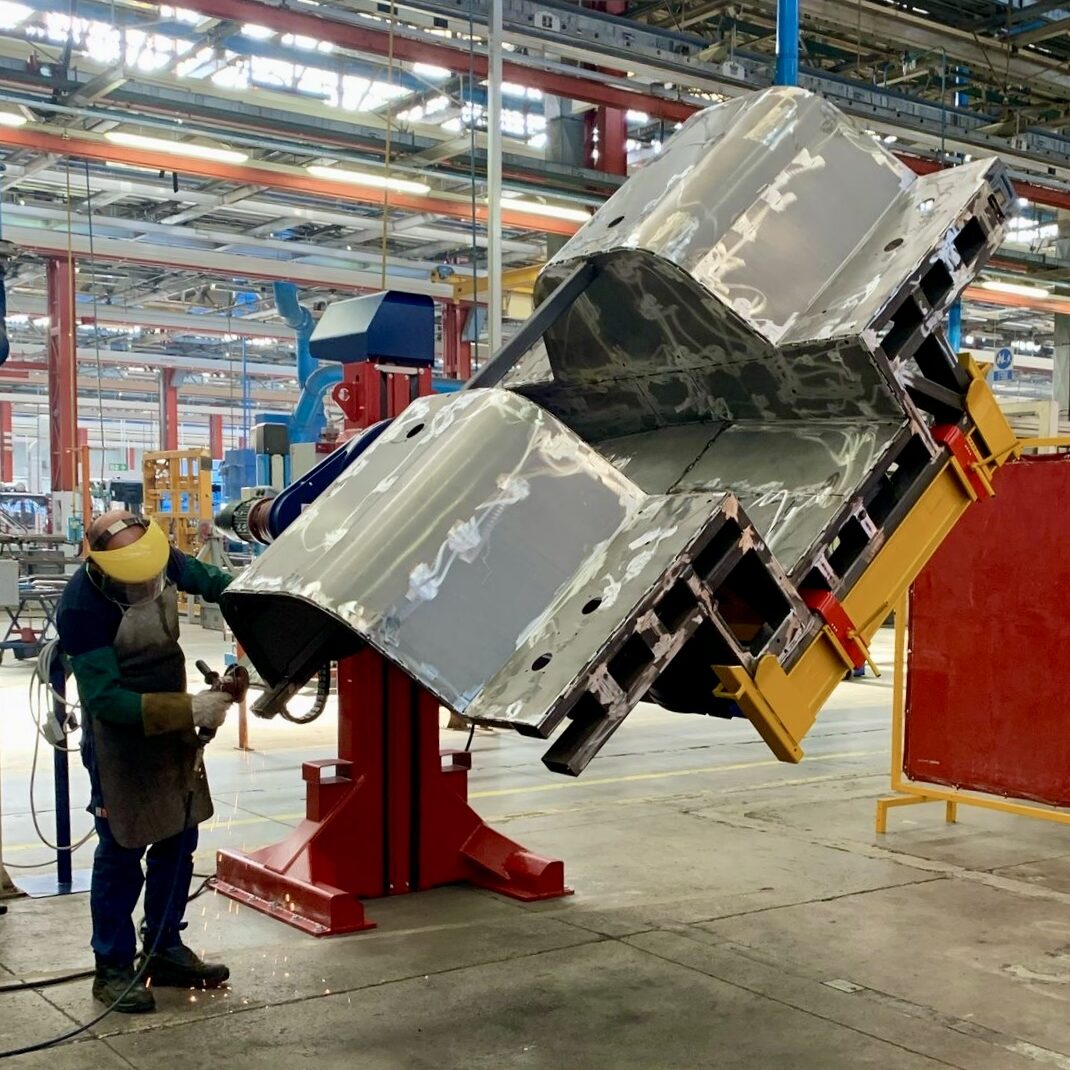

The sector of application in welding and assembly are the most varied:

Truck frames and tanks
Earth moving machines and components
Railway bogies, train cars and frames
Automotive and military vehicles
Agricultural vehicles and machinery
And many other

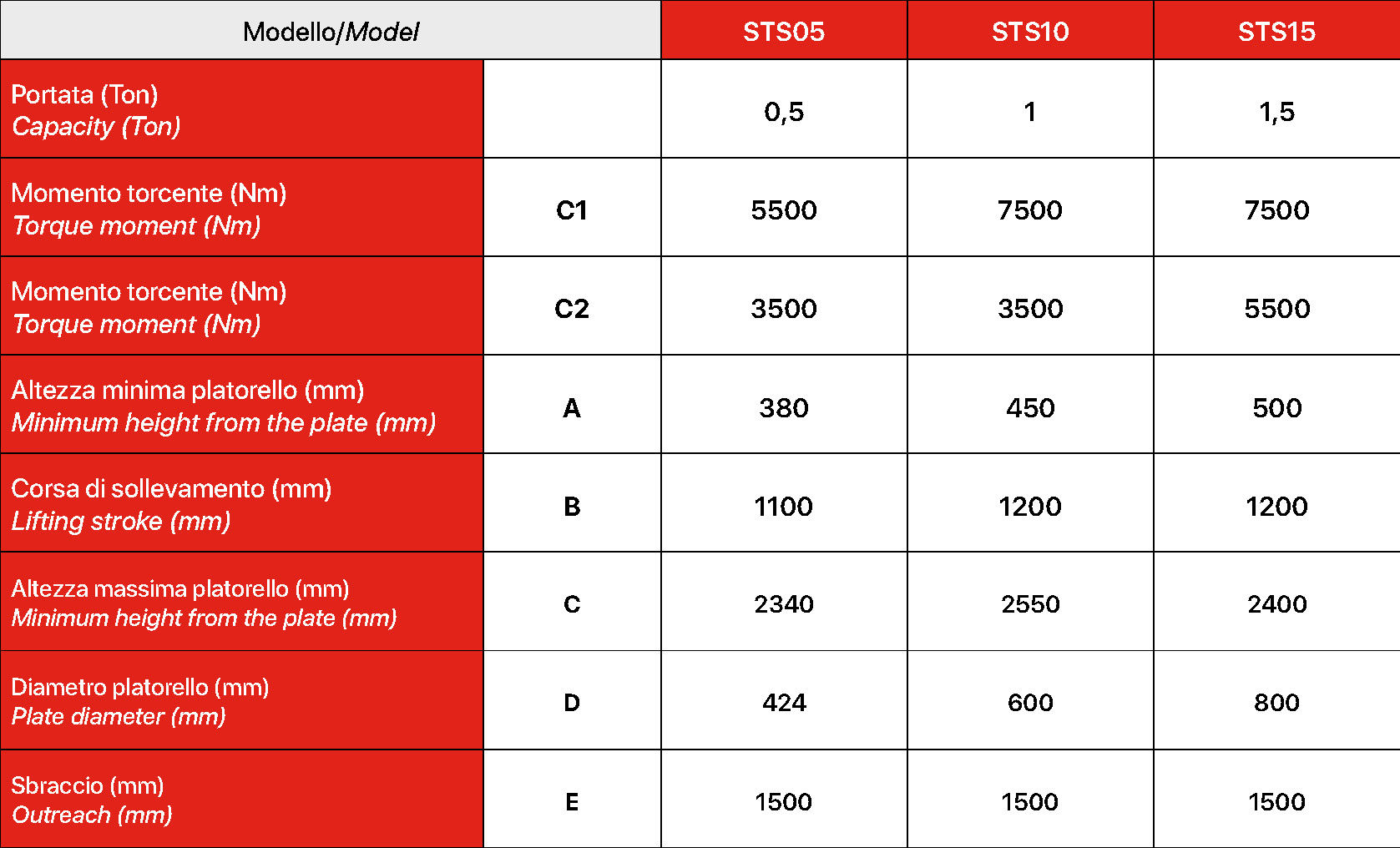

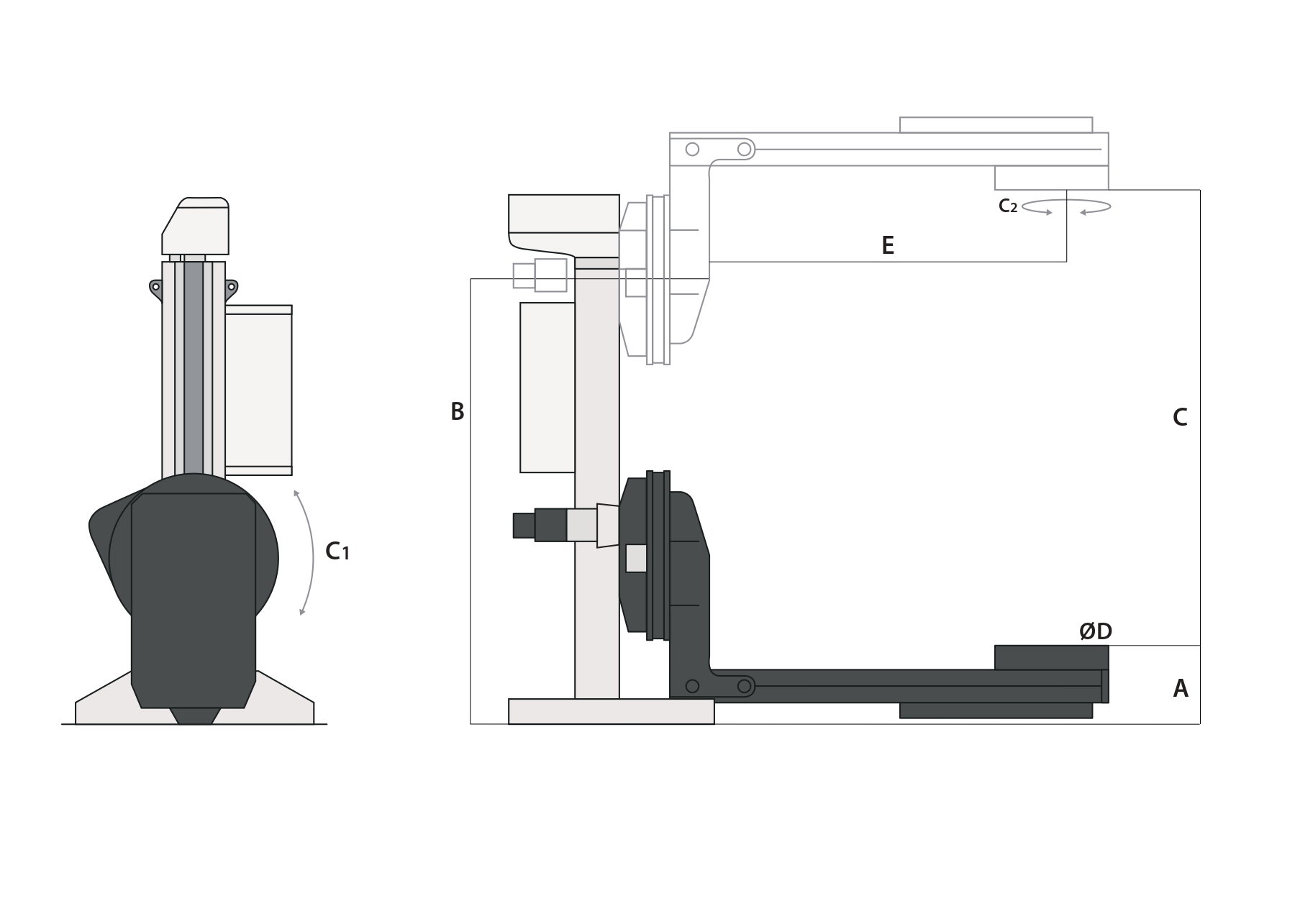

TECHNICAL SPECIFICATIONS

OPTIONAL

Rotary ground 400A-800A-1200A

Extra stroke in column height

Load cell system

Safety laser scanner

Safety wireless remote

Self-learning hardware & software system

Smart interface

Torque live detection system
