WP – 3 Axis Welding Positioners

Technical features
Optional
Accessories
Contact Us
Emanuel WP 3 Axis Welding Positioners

The WP is a 3 axis welding positioner that allows the lifting and the rotation of any of work piece during welding and assembly operations.

Ergonomic positioners are used during welding and assembly operations of big weldments that are manufactured by companies of all sectors. The ergonomics, technical characteristics and functional flexibility allow you to increase productivity and efficiency by minimizing the handling of the product on which it is necessary to work on.

For information
Download the Brochure
Configur your equipment
ROI Calculator

Technical features

MAIN FEATURES

The lifting and inclination are are obtained by hydraulic operation. The rotation is electromechanical with the help of an inverter that allows the speed to be adjusted according to the operators needs.

All controls are obtained from the control unit and the remote pendant control.

The production includes a complete range of models of various capacities. Our range includes several optional and accessories that meet the most diverse needs of the user.

Emanuel welding positioners are built according to the customer’s specific needs.

Our positioners can feature for 4.0 Industry.



ADVANTAGES

Emanuel positioners offer many advantages:

  • Safety: reduces the need for dangerous movements while operating lifting equipment such as overhead cranes
  • Health: welders and operators always maintain the correct posture and reduce fatigue.
  • Improved production quality: allow to work at an ideal height and in correct position.
  • Increased productivity: lifting and turning products without overhead cranes or ordinary cranes reduces downtimes



SECTORS

The sector of application in welding and assembly are the most varied:

  • Truck frames and tanks
  • Earth moving machines components
  • Railway sector components
  • Automotive and military frames and components
  • Agricultural vehicles frames and components
  • And many other

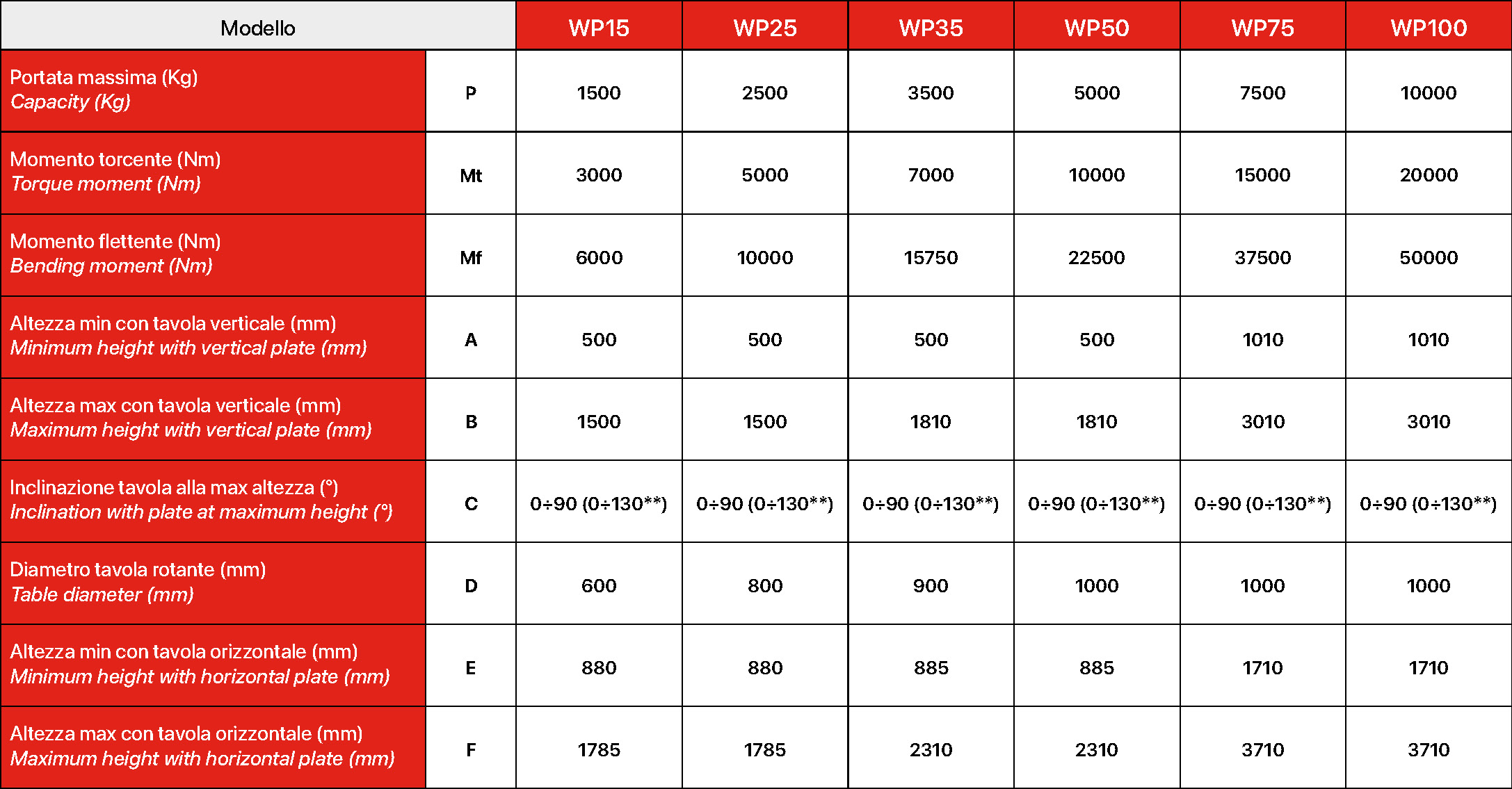

TECHNICAL SPECIFICATIONS

Emanuel WP 3 Axis Welding Positioners

(click to enlarge)

**achievable with dedicated Option

Emanuel WP 3 Axis Welding Positioners Emanuel WP 3 Axis Welding Positioners Emanuel WP 3 Axis Welding Positioners

OPTIONAL

Rotary ground 400A-800A-1200A
Self-learning hardware & software system
Foot switch
Safety wireless remote
Safety laser scanner
Smart interface

Accessories

Self-centering chucks

Configurator WP
