STR /1 – Headstock Only Positioners

Technical features

Emanuel STR Headstock Only Positioners

Emanuel STR Headstock Only Positioners

Emanuel STR Headstock Only Positioners

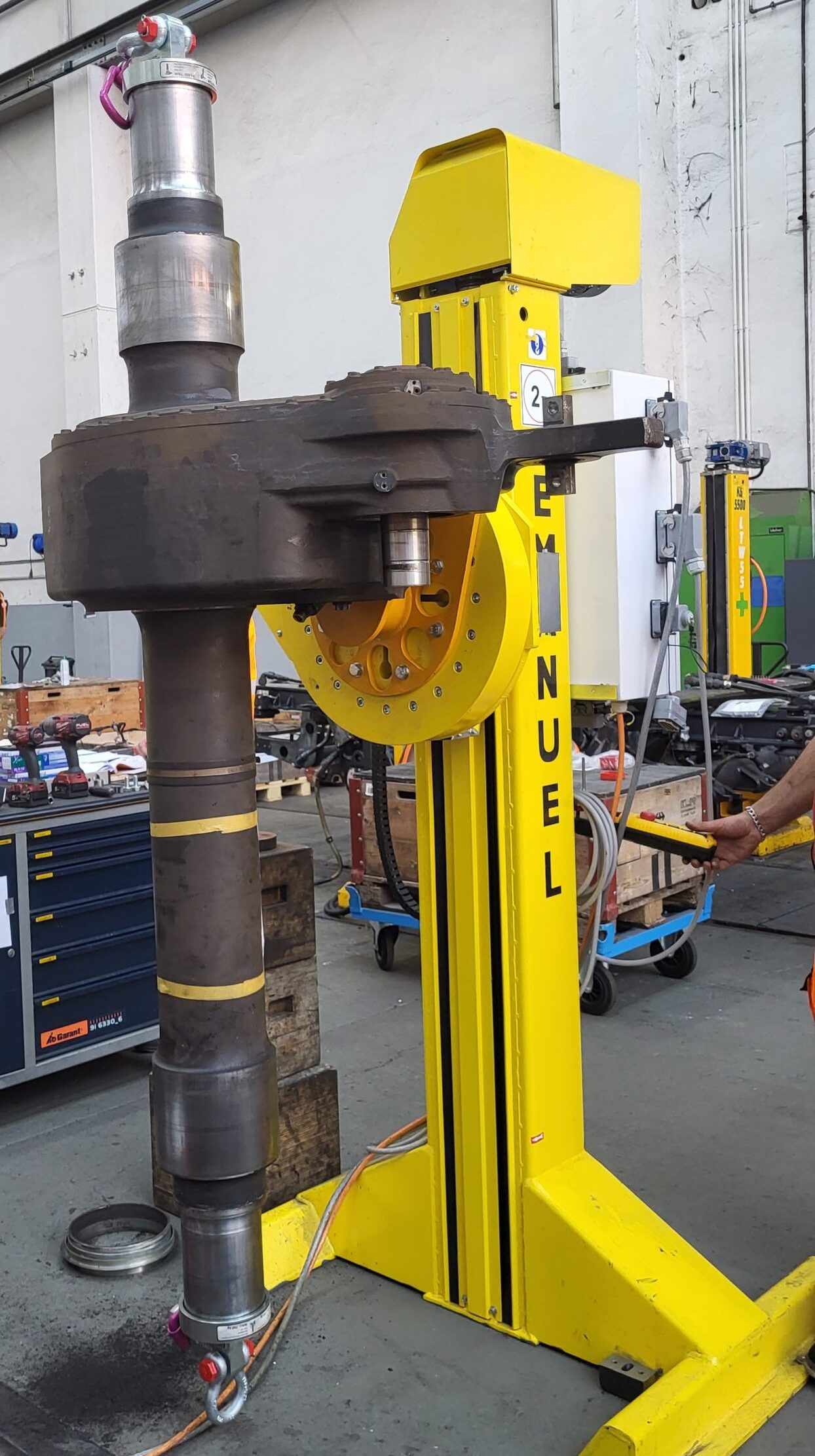

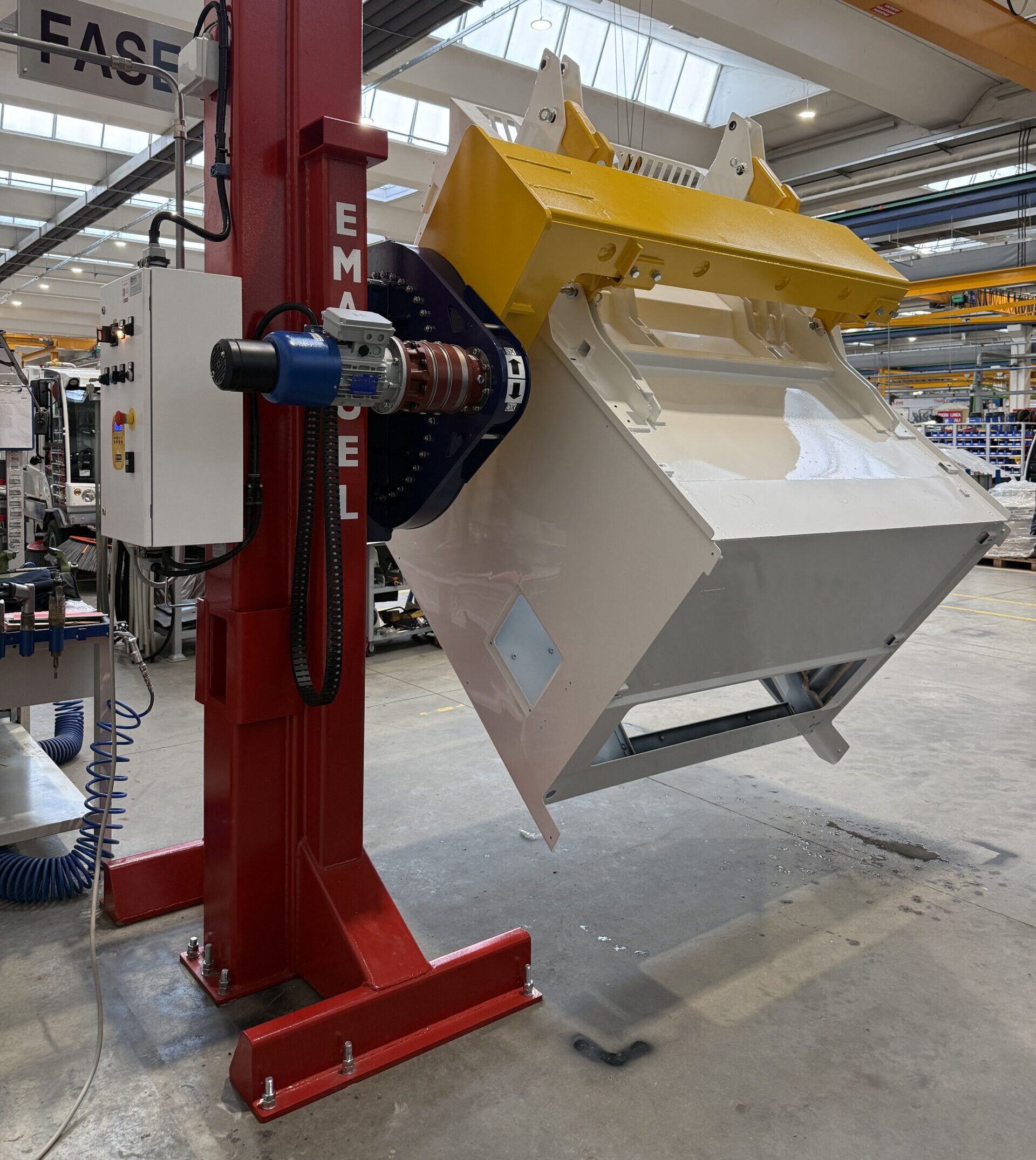

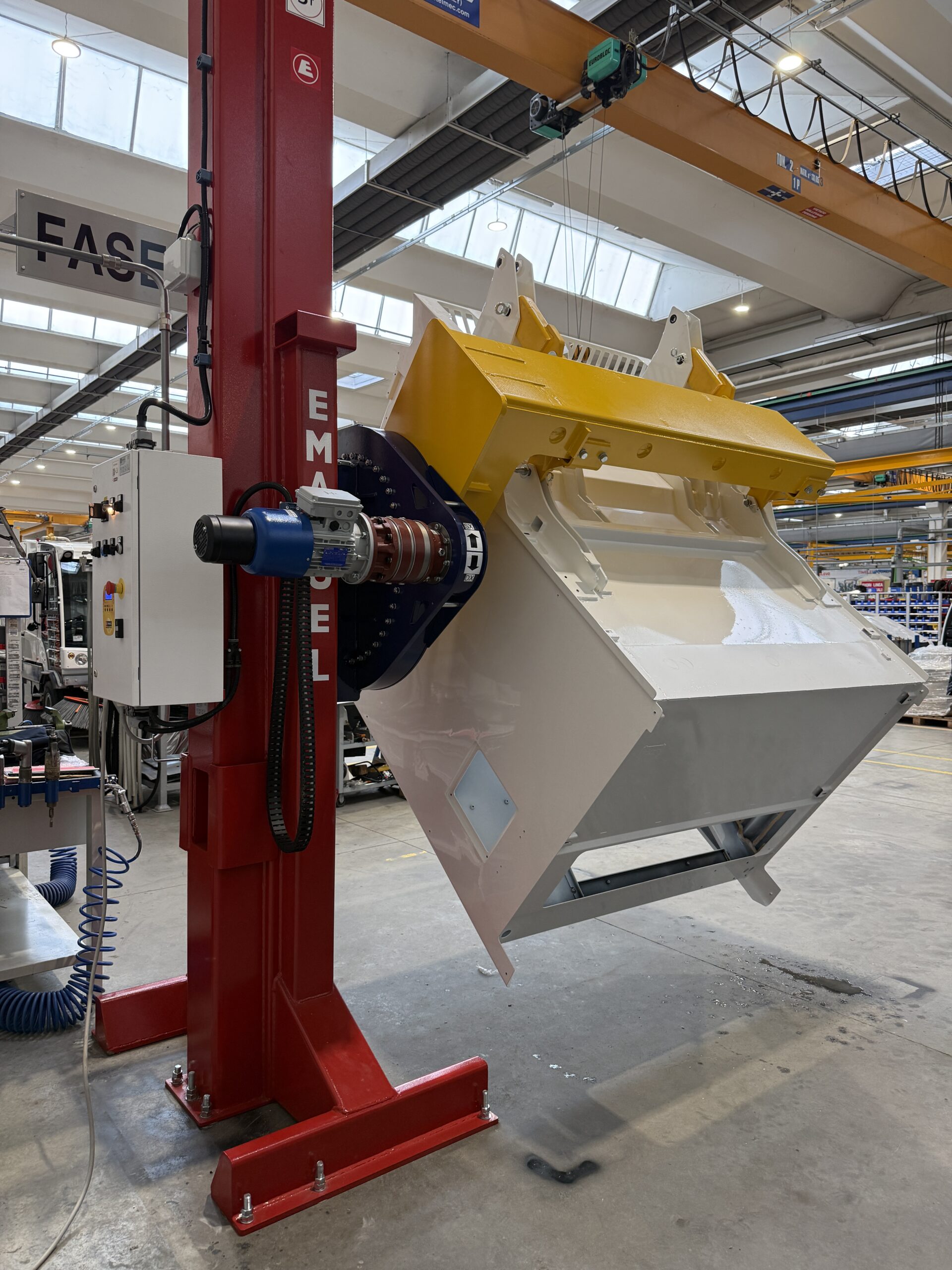

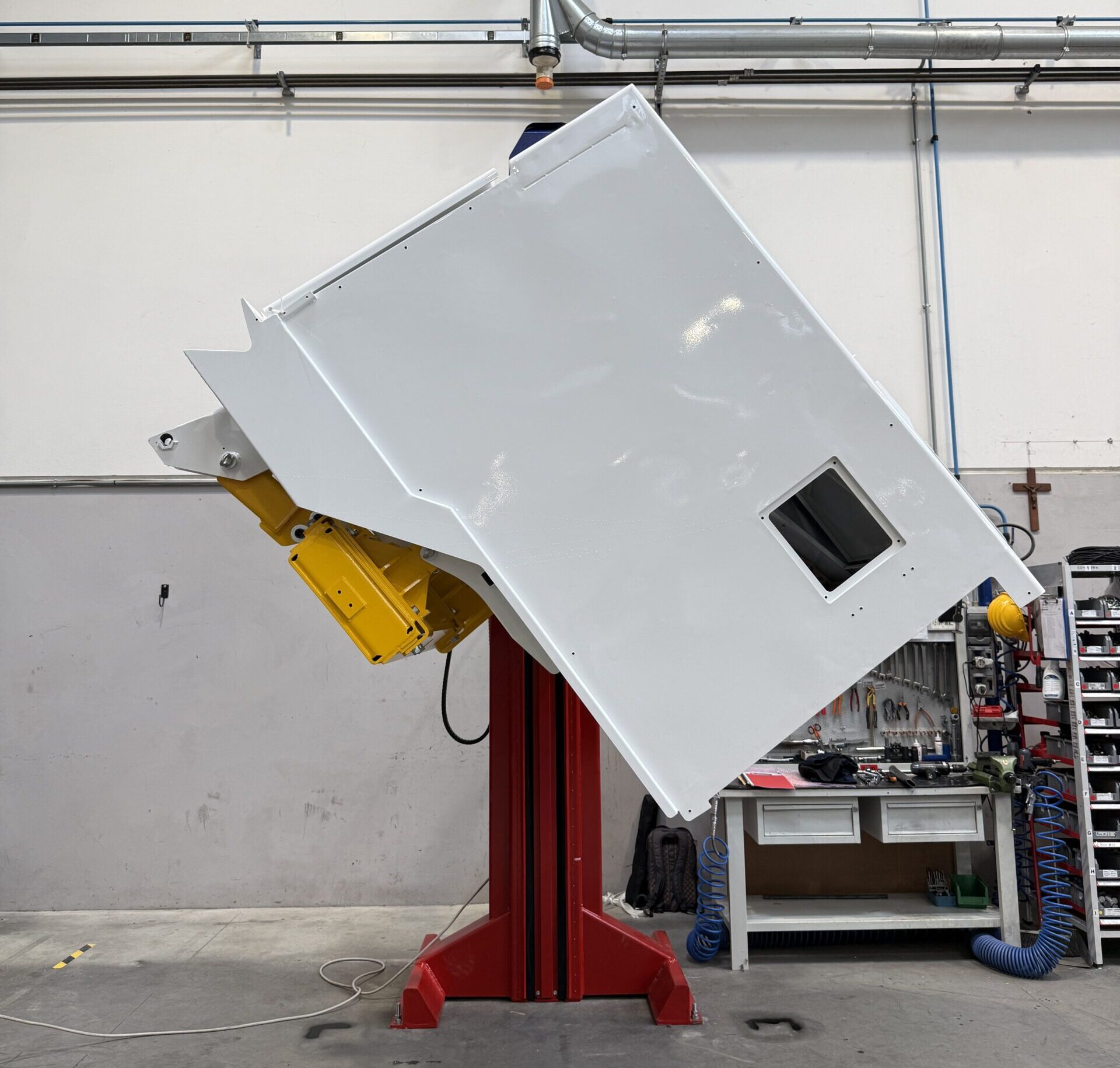

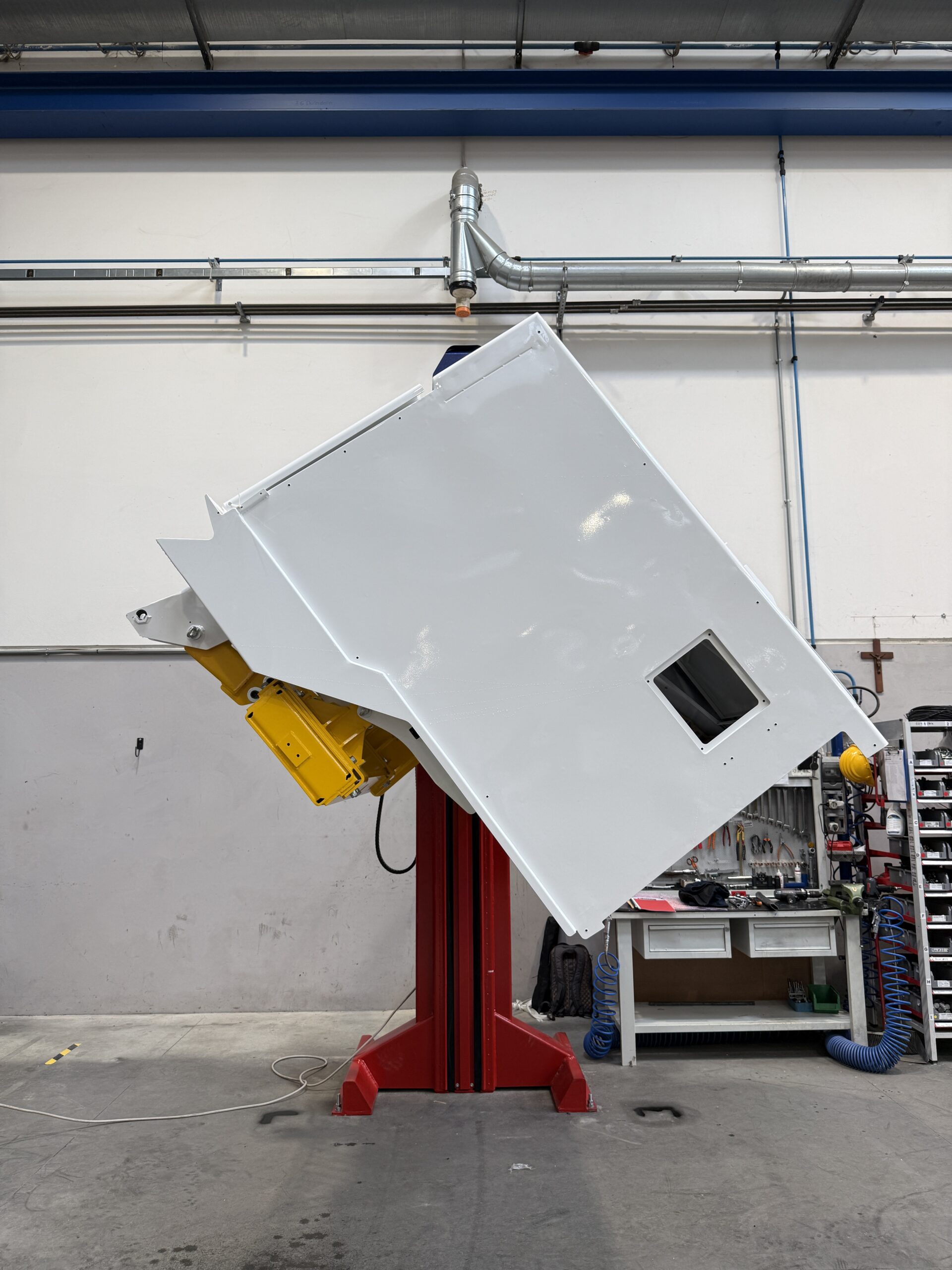

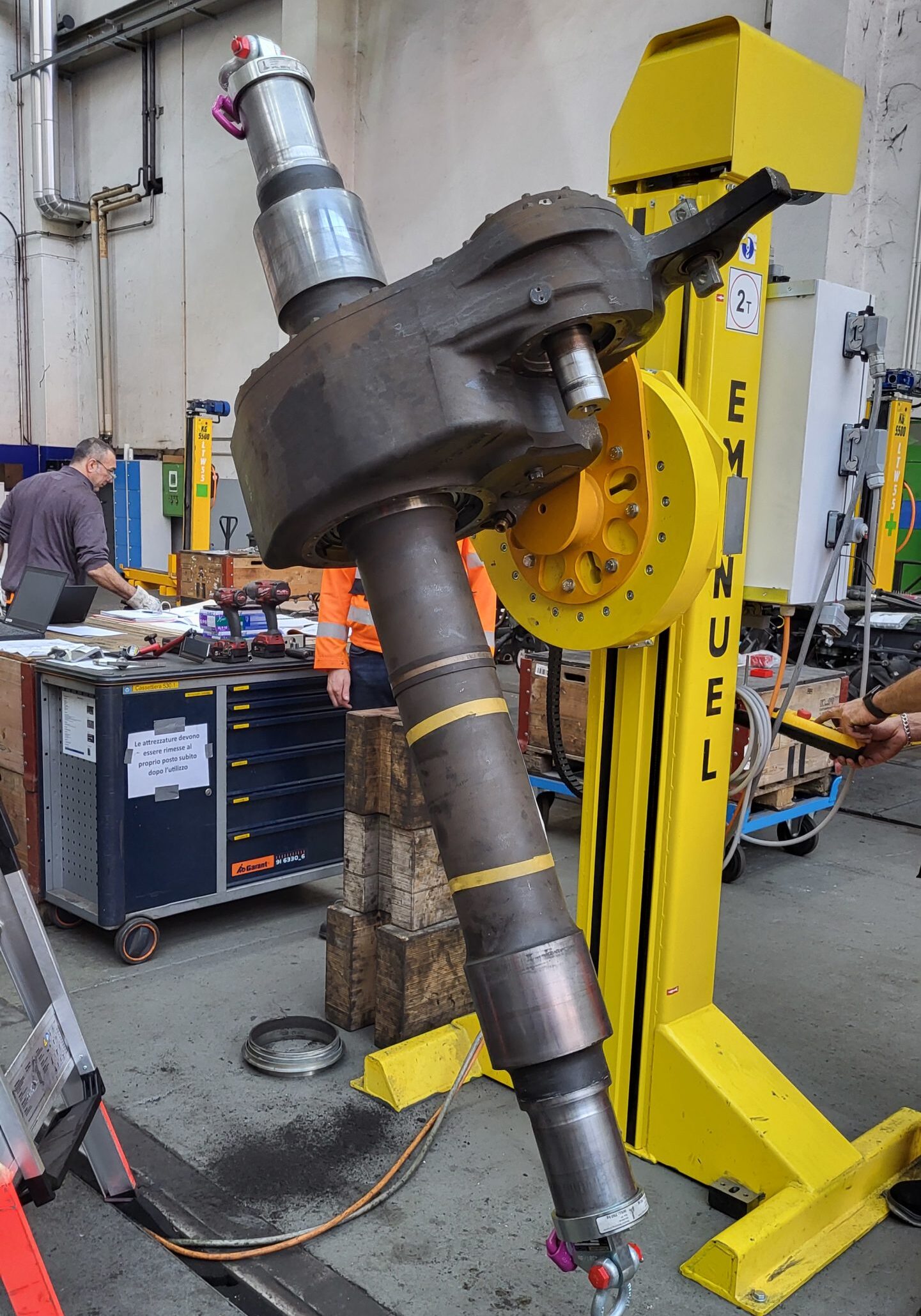

The STR /1 is a Headstock Only / Single Column positioner that allows the lifting and the rotation of any kind of weldment. Ergonomic positioners that used during welding and assembly operations of big weldments that are manufactured by companies of all sectors.

Compared to similar products, Emanuel ergonomic positioners feature unique caractestictis such as: compact design, flexibility and lightness. Our models start from a lifting capacity of 1 Ton up 15 Tons. The STR /1 positioner is also available in the HEAVY DUTY SWR /1 version with improved performance.

For information

Download the Brochure

Configur your equipment

Technical features

MAIN FEATURES

The lifting of the X axe is mechanical, generated by a gear motor and screwnut connected to the load supporting device composed of a steel bracket. The rotation of the Y axe is mechanical, generated by a gear motor coupled with a self-braking motor with speed control via inverter system.

All the controls are on the control unit and on the handheld remote, which are both installed on master column. Emanuel head and tailstcok positioners are built according to the customer’s specific needs.

ADVANTAGES

Emanuel positioners offer many advantages:

Safety: reduces the need for dangerous movements while operating lifting equipment such as overhead cranes
Health: welders and operators always maintain the correct posture and reduce fatigue.
Improved production quality: allow to work at an ideal height and in correct position.
Increased productivity: lifting and turning products without overhead cranes or ordinary cranes reduces downtimes

SECTORS

The sector of application in welding and assembly are the most varied:

Truck frames and tanks
Earth moving machines and components
Railway bogies, train cars and frames
Automotive and military vehicles
Agricultural vehicles and machinery
And many other

Versions available that feature only rotation or only lifting.

The STR /1 positioner is also available in the HEAVY DUTY SWR /1 version with improved performance.

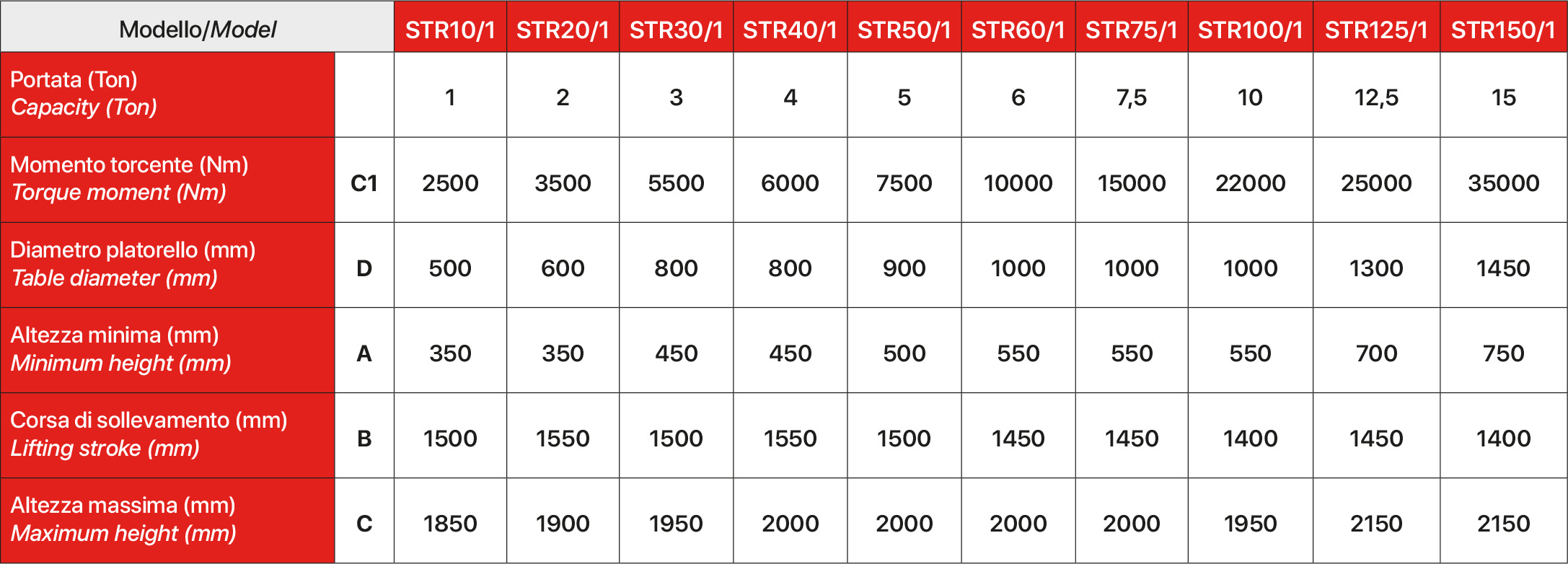

TECNICAL SPECIFICATIONS

(click to enlarge)

OPTIONAL

Rotary ground 400A-800A-1200A

Extra stroke in column height

Self-learning hardware & software system

Safety wireless remote

Safety laser scanner

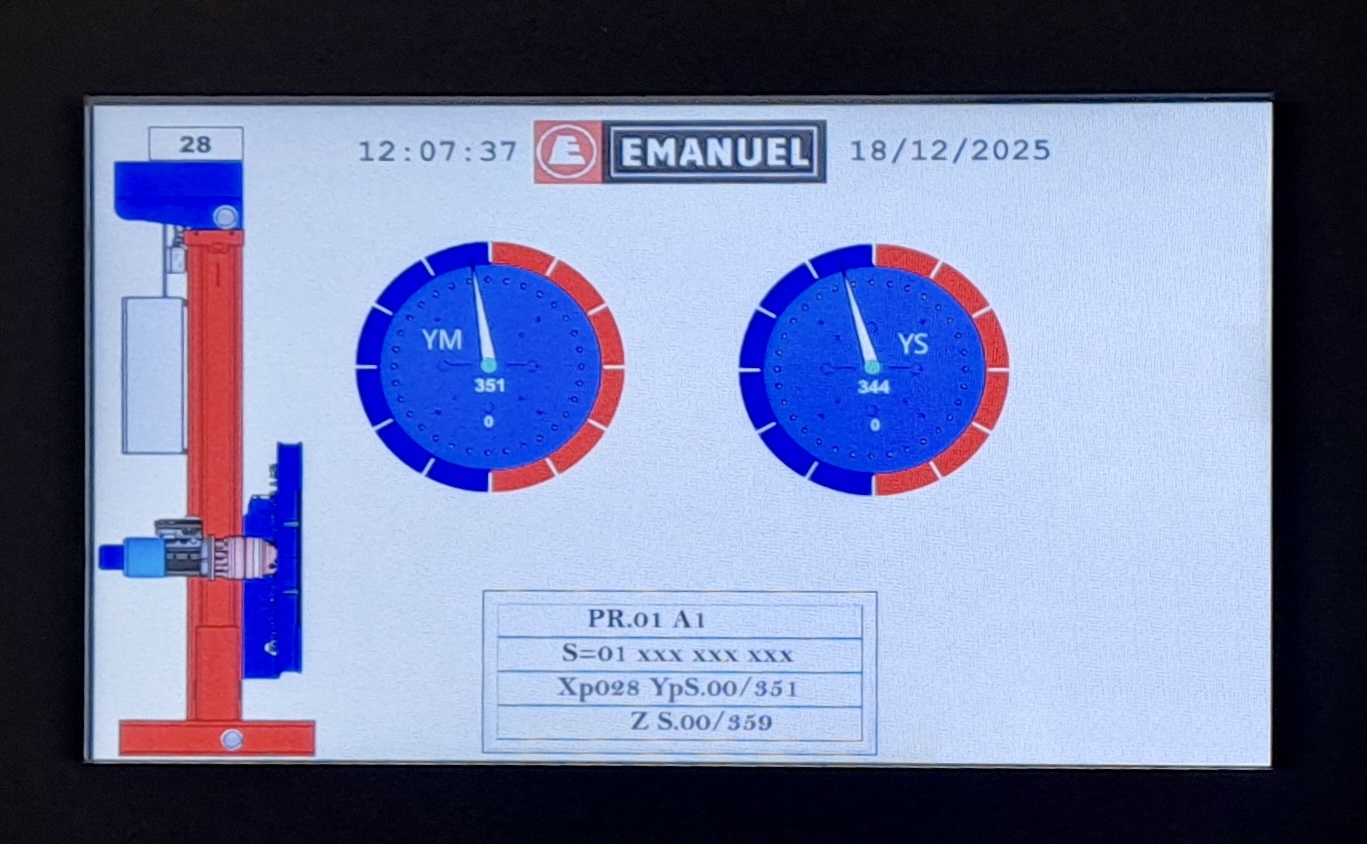

Smart interface

Torque live detection system

Load cell system
