SCM – Railway Lifting Jacks

Technical features

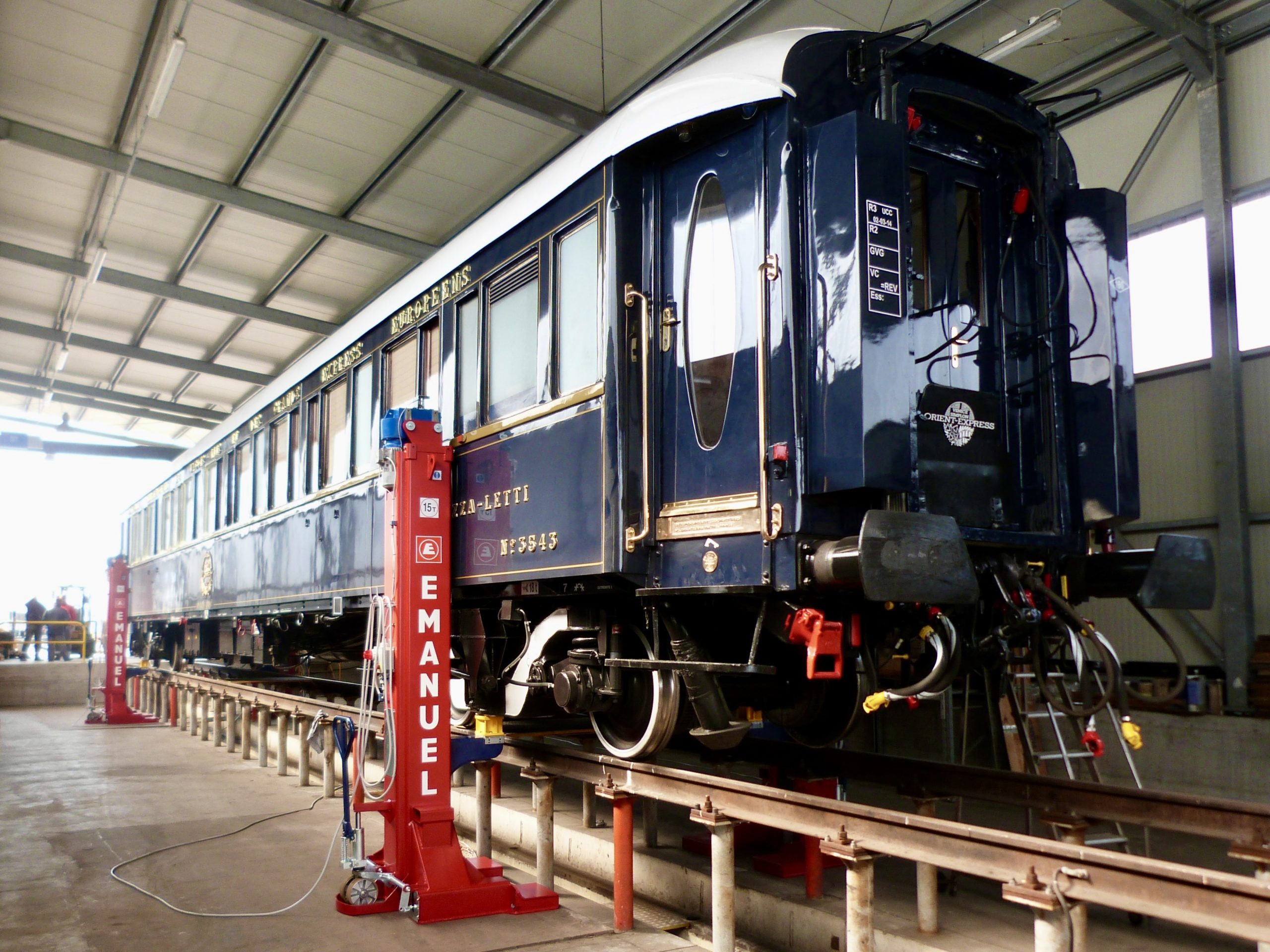

Emanuel SCM railway lifting jacks

Emanuel SCM railway lifting jacks

Emanuel SCM railway lifting jacks

Emanuel SCM railway lifting jacks

Emanuel SCM railway lifting jacks

Emanuel SCM Railway Lifting Jacks

Emanuel SCM railway lifting jacks

Emanuel SCM railway lifting jacks

Emanuel SCM railway lifting jacks

Emanuel SCM railway lifting jacks

The SCM railway lifting jacks are often analyzed and personalized of specific client requirements.
Our railways mobile lifting jacks are available in different standard models depending on the lifting capacity, starting from 5,5 Ton to 50 Ton.
SCM series columns can be configured from 4 to 64 columns, with fixed or movable anvil.

In conformity with MACHINE DIRECTIVE 2006/42/CE and approved according to the European EN 1493.

For information

Download the Brochure

Configur your equipment

Technical features

VERSIONS

Our SCM railway lifting jacks are available in 2 different versions:

Fixed anvil,
Movable anvil

The main differences between mobile lifting jacks with movable and fixed anvil are:

Fixed anvil jacks are largely used and more economical. In fact, the structure that is built around the anvil is more compact and simpler.
Weight: movable anvil jacks are heavier given their larger structure. The fixed anvil jacks are easier to handle and move around even at intermediate distances.
Structure: the jacks with movable anvil have larger structure, instead fixed anvil jacks are more compact.

On the other hand, movable anvil jacks are often required in workshops where the maintenance is usually carried on the same type of train. Once the jacks are put in place the operators don’t need to move the lifts anymore as the lifting points don’t change.

Also, movable anvil jacks are ideal for unloading cars from trailers.

Our electromechanical lifting system is composed by:

Motoreducer
Irreversable trapezoidal screw
Main nut
Safety nut

ELECTRONIC SYSTEMS

STANDARD – It is able to control up to 8 columns. The most practical and economical configuration.

EXPANDABLE – It is able to control up to 16 columns (8+8). Equipped with two control units, it comes with practicality of the Standard System while having the possibility to create two distinct lifting sets.

SERIAL – Capable of controlling up to 64 columns. The most complete and advanced, designed for maximum flexibility is able to expand the lifting set with no modification required. It’s loop connection system decreses the total lenght of the cables necessary and limits the crossing of the cables over the rail to only two.

A few of the characteristics of our electronic systems:

Event storing and recording (Work time, indication of the events occurred and failures, etc.).
Remote assistance: using an internet connection it is possible run to a complete check of system: electronic and electromechanical tests and checks, verifying failures, analyzing work procedures.
Self-programmed maintenance.

OPTIONAL

Extension of the jacks stroke and height

Mechanical translator system - Manual or motorized

Hydraulic translator system – Manual or motorized

Wireless safety remote control

Automatic lubrification system

Auxilliary rail displacement system Manual or motorized

Inverter system

Loading cell system for weighing

Smart interface

Motorized displacment system Threephase or battery operated

Accessories

Configurator SCM

Maximum number of jacks needed to lift the railway vehicle

What is the weight of the heaviest train car that must be lifted? (in Ton)

Is the weight equally distributed across all lifting points?

Yes No

What is the approximate height of the lifting points situated below the train car? (in mm)
